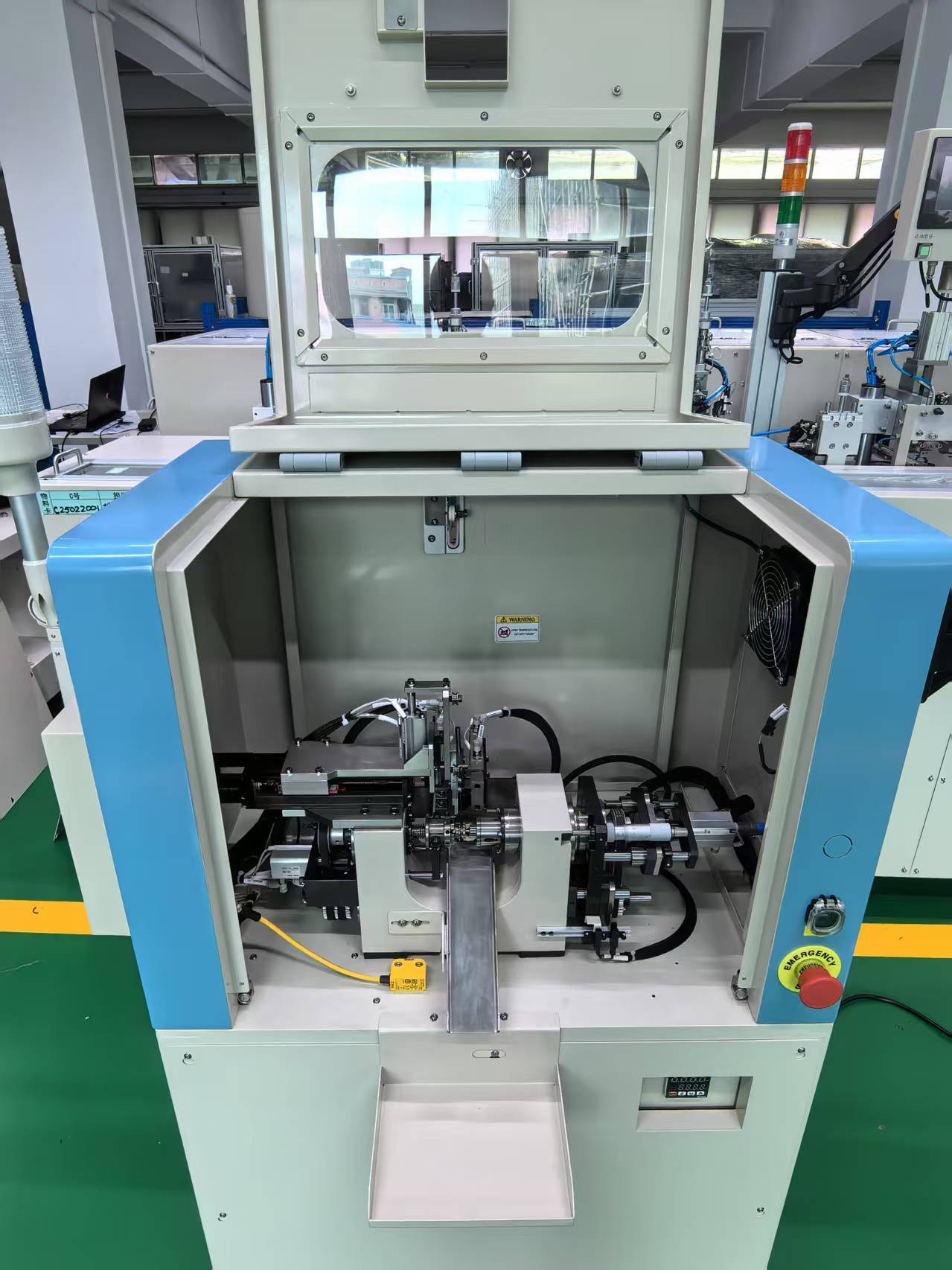

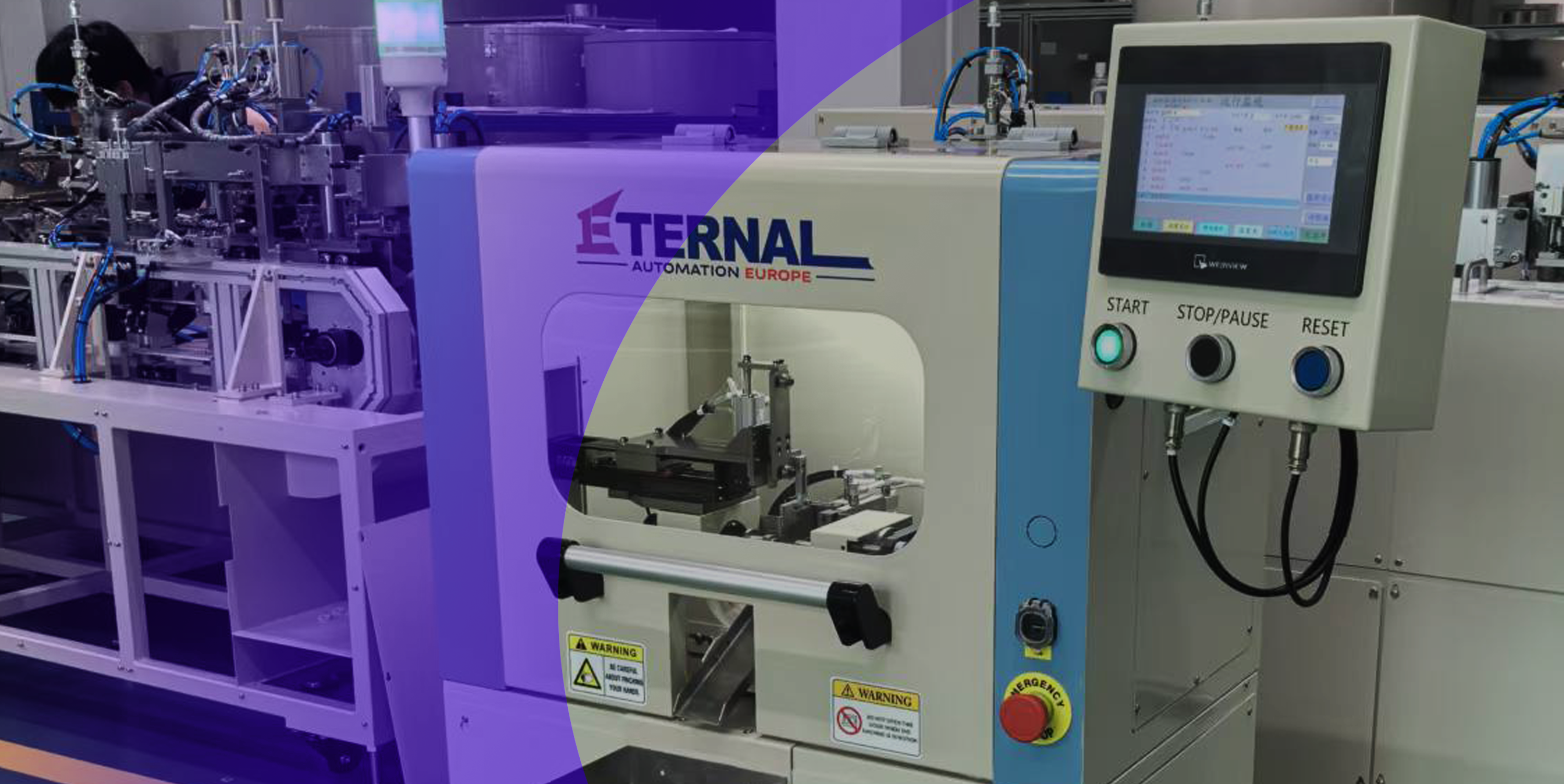

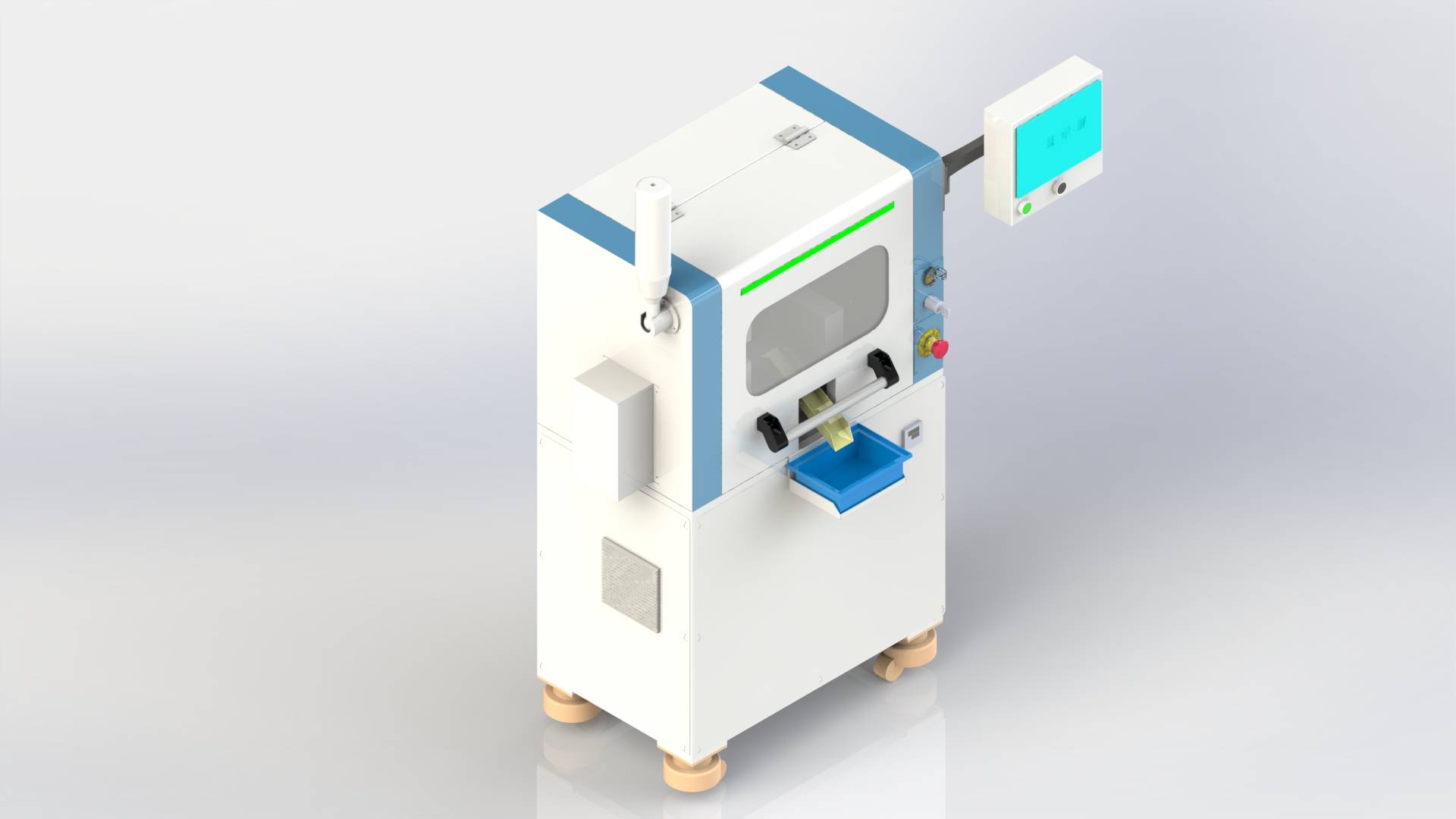

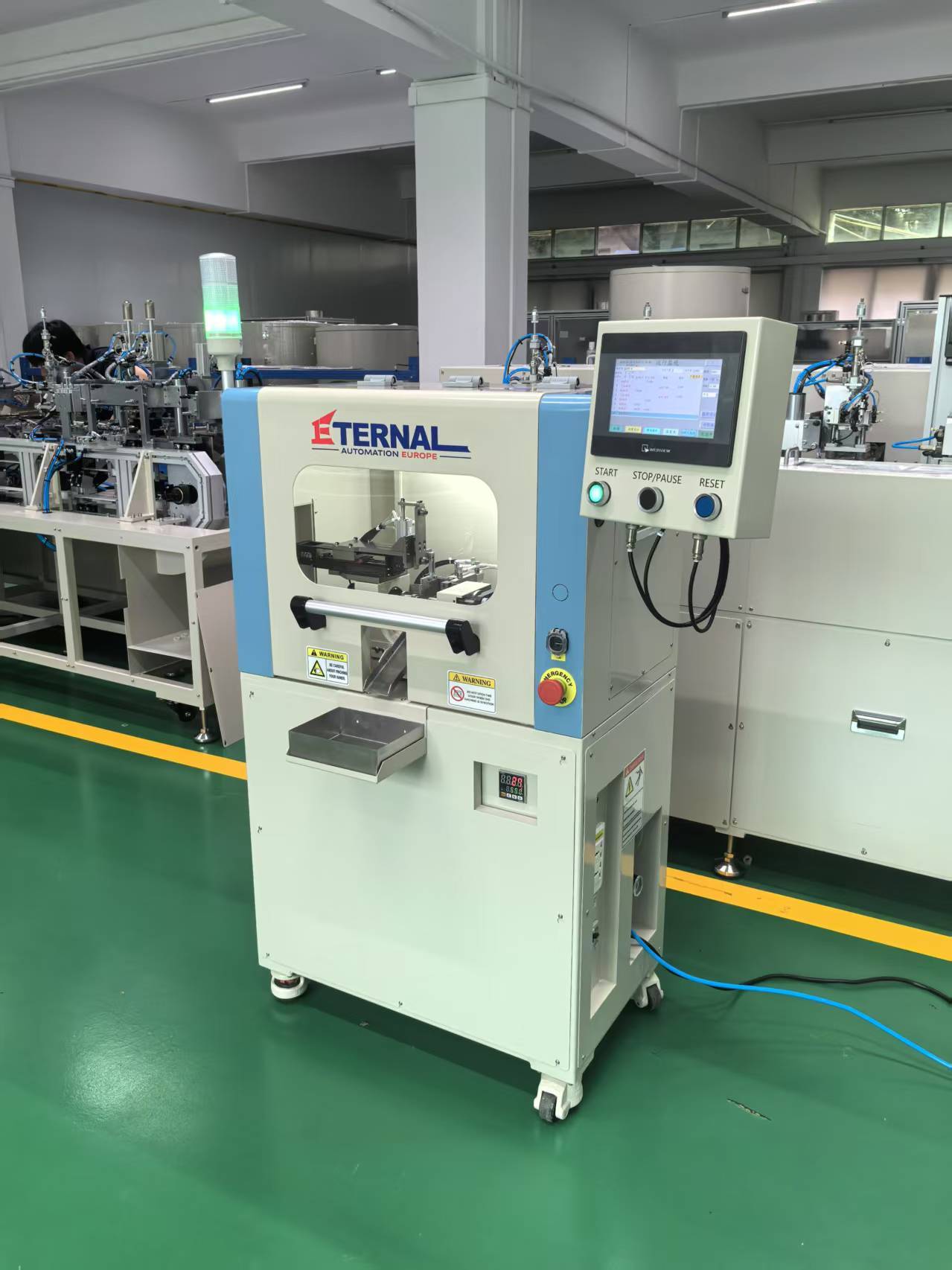

Automatic Air Coil Winding Machine with Hot-Bondable Wire
The EUBR – Bonding Edition is the ideal automated solution for the production of air coils using hot-bondable wire. Designed to deliver precision, efficiency, and repeatability, this machine is particularly suited for high-frequency applications and miniaturized components.
Key Features
Capable of handling ultra-fine wires from 0.03 mm to 0.2 mm, ensuring compact, stable coils with tight tolerances.
Equipped with a 1000W heat gun, the system activates the bonding agent in the wire, securing each turn firmly in place.
Designed for seamless integration into automated or semi-automated production environments.
Independent servo drives on all axes provide accurate motion control and adjustable winding speeds of up to 3000 RPM.
Applications
Air coils for RF circuits, mini inductors, and electronic filters
Automotive: position sensors, wireless systems
Medical devices: compact, high-precision coils
IoT, RFID, and telecommunications components
