Linear coilwinding machines
Eternal Automation has extensive experience in producing stand-alone winding machines, either standard or fully customized, designed for a wide range of applications. The core technology is continuously updated and renewed to remain cutting-edge while simplifying programming and production operations, as well as complying with all current safety regulations. Each machine can be equipped with various options, depending on production needs and customer requests
Features
Eternal machines are fully designed and manufactured in our production facilities, where all customized components, including cast bases, are also produced. Electronic and pneumatic components are readily available on the European market. Some of the brands we use include Siemens, Panasonic, and Festo.
The machine's structure is coated with high-quality resin-based paints.
The base is made from a single block casting, providing robustness and stability while minimizing vibration.

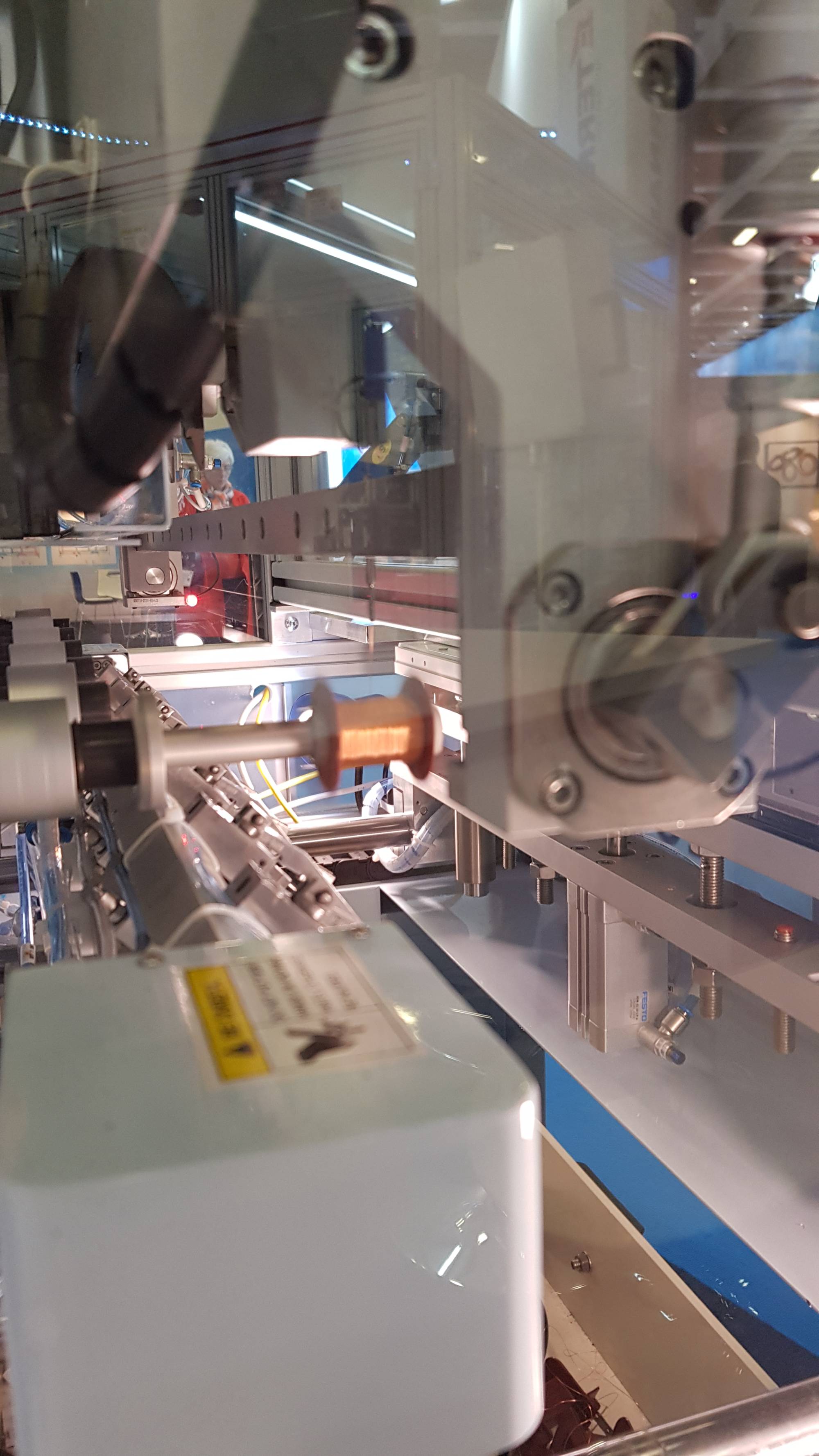

The spindle support block is crafted from a single piece, allowing bearings to optimize speed and reduce noise.
The machine is equipped with ball screw guides to ensure greater positioning and repositioning precision.
The main spindle rotation system has passed rigorous quality checks and guarantees high speed, low noise, and long durability.
The coil position control sensor ensures the coil is correctly placed. If not, the machine emits an alarm for a set time and stops, effectively preventing breakage of the wire guide tubes.
The crossbar is made from a single casting, with verticality of 0.01 mm and parallelism of 0.01 mm across its entire length.
An AC servomotor is used, allowing for rapid and precise travel and positioning speeds.
Programming and modifications are done through a touchscreen interface mounted on a movable arm next to the machine, allowing it to be positioned for operator convenience.
The control area features start, pause, reset, and emergency buttons. It is user-friendly and safe.
Through the interface, users can modify or create a program, as well as store and recall up to 99 different programs.
Restricted videos: register to watch

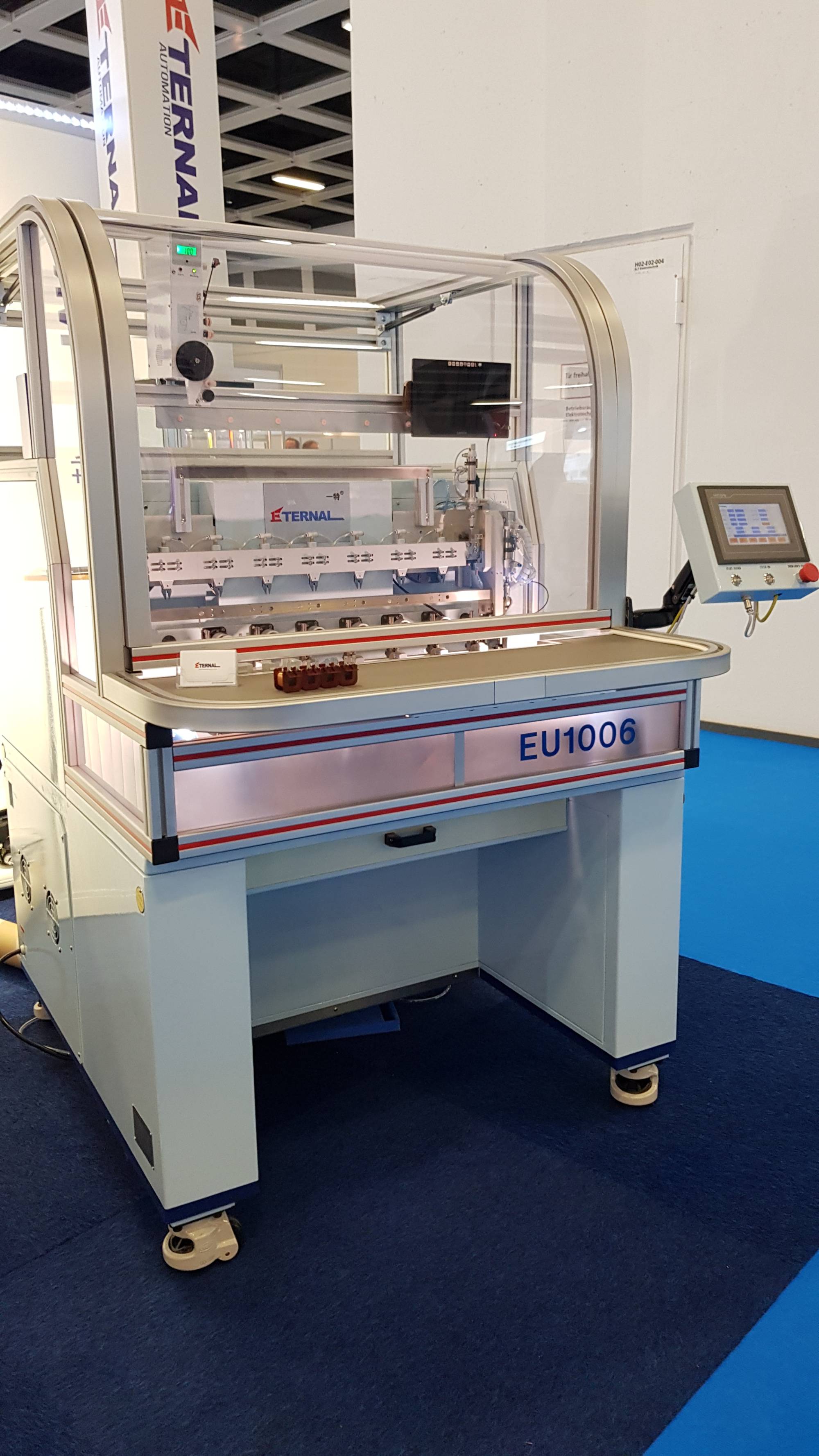

Standard models

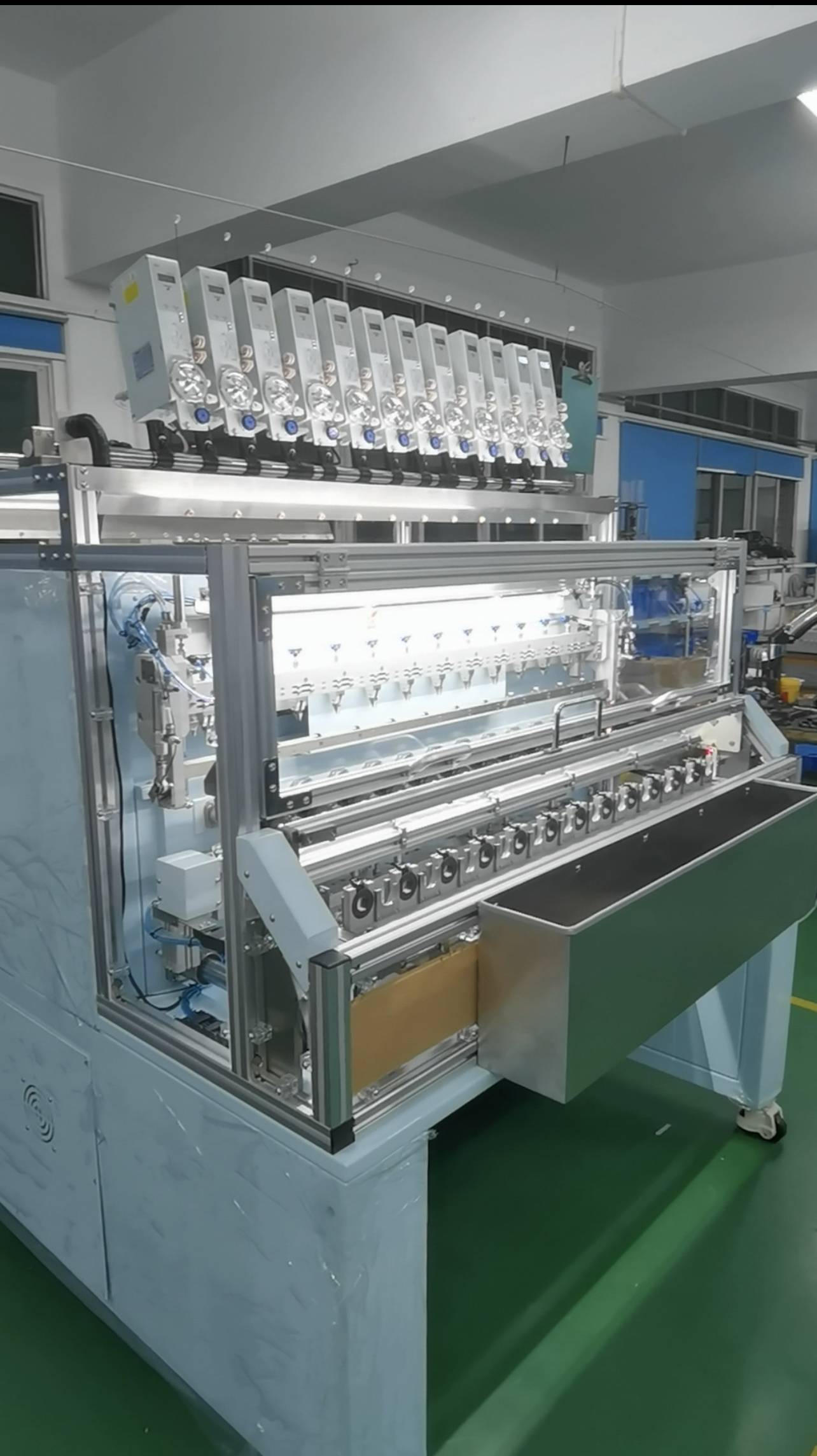

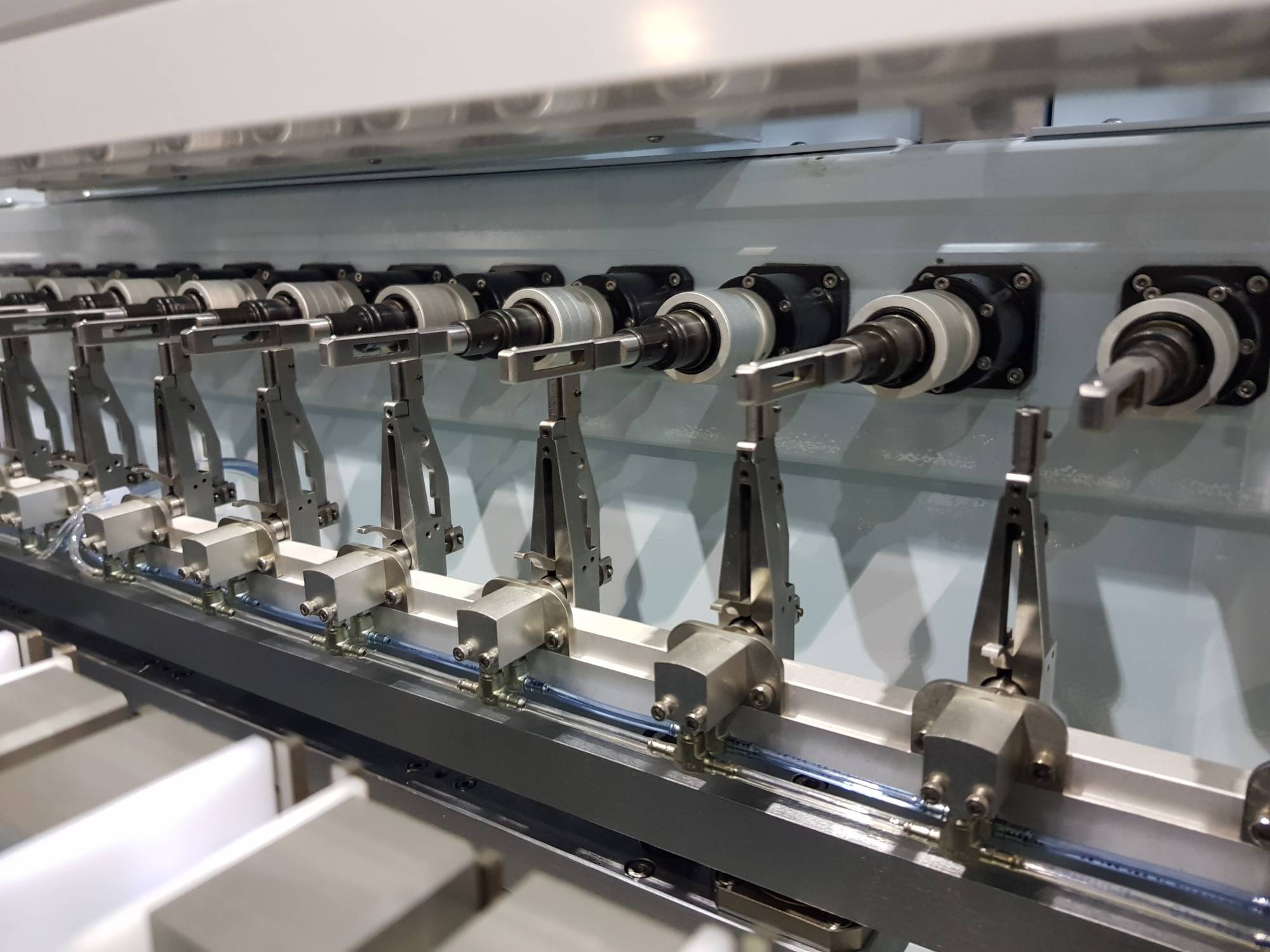

Eternal produces various standard versions of multi-spindle winding machines, but the number of spindles can be agreed upon based on the customer's needs, as well as the pitch and all optional configurations.
